Comparing Drawings
Compare Drawings opens two documents in a linked review view — pick a base revision and a comparison revision, and both panes zoom and pan together so differences stay aligned under your cursor.
Updated 2026-07-03 · 5 min read
Comparison works best when pages are aligned, scaled, and named clearly.
Start a comparison
- 1
Open Compare Drawings
Launch the compare tool from the workspace menu. It lists the drawings available in the workspace.
- 2

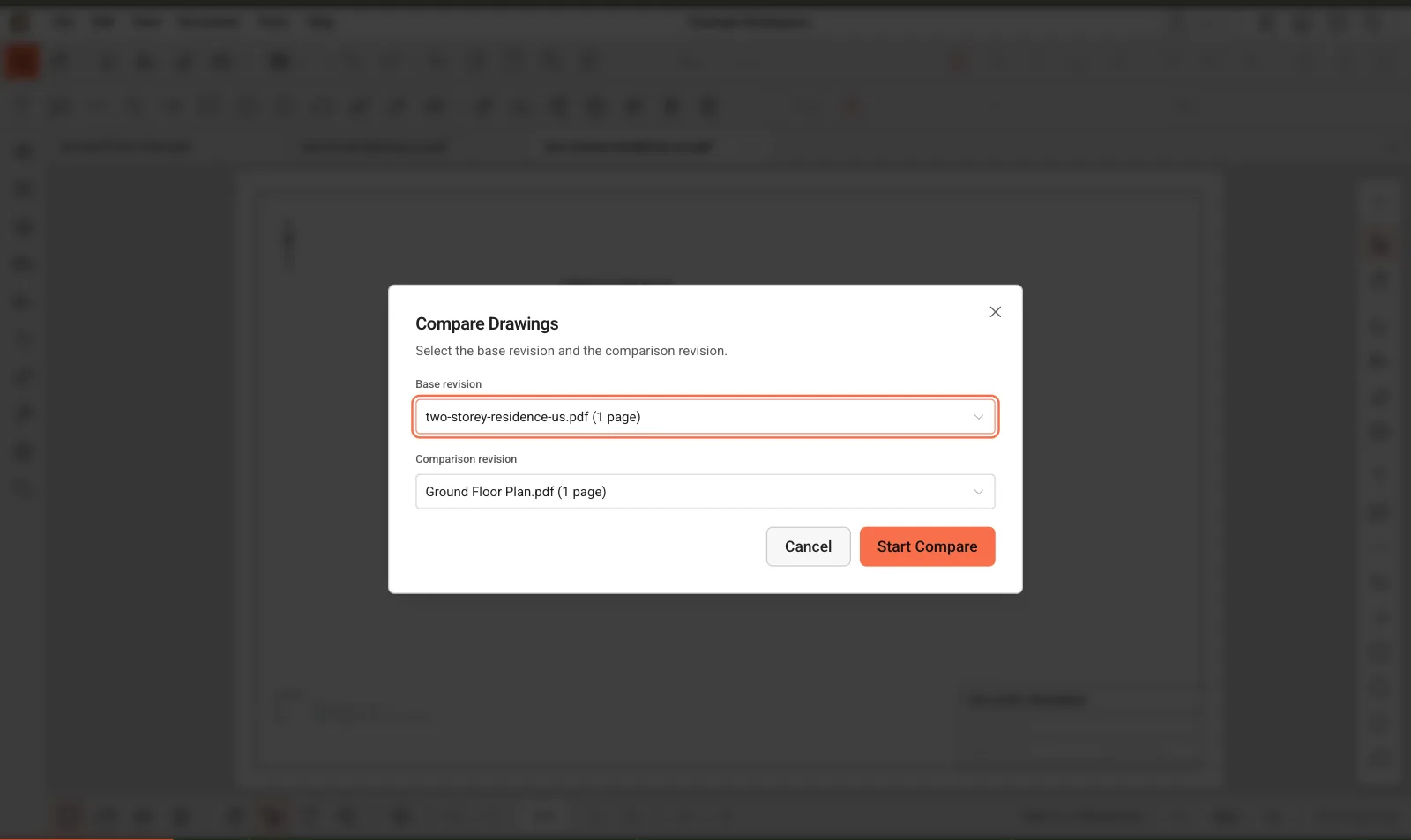

Pick base and comparison
Choose the original sheet as the base and the revised sheet as the comparison, then start the compare.
- 3
Review together
Zoom and pan are synchronized between the panes, so the same region stays in view on both revisions while you scan for changes.
Record what changed
- 1
Note the differences
The compare view is read-only. When you spot a change, note its location and sheet.
- 2
Mark up the live drawing
Close compare, then use revision clouds, arrows, text, or snapshots on the working drawing to record findings.
