Drawing Polygons and Polylines
Polygons and polylines let you trace shapes that are not simple rectangles. Use measurement tools when the same geometry needs quantity totals.
Updated 2026-06-12 · 5 min read
Drawing A-101.pdf
100%FitExport

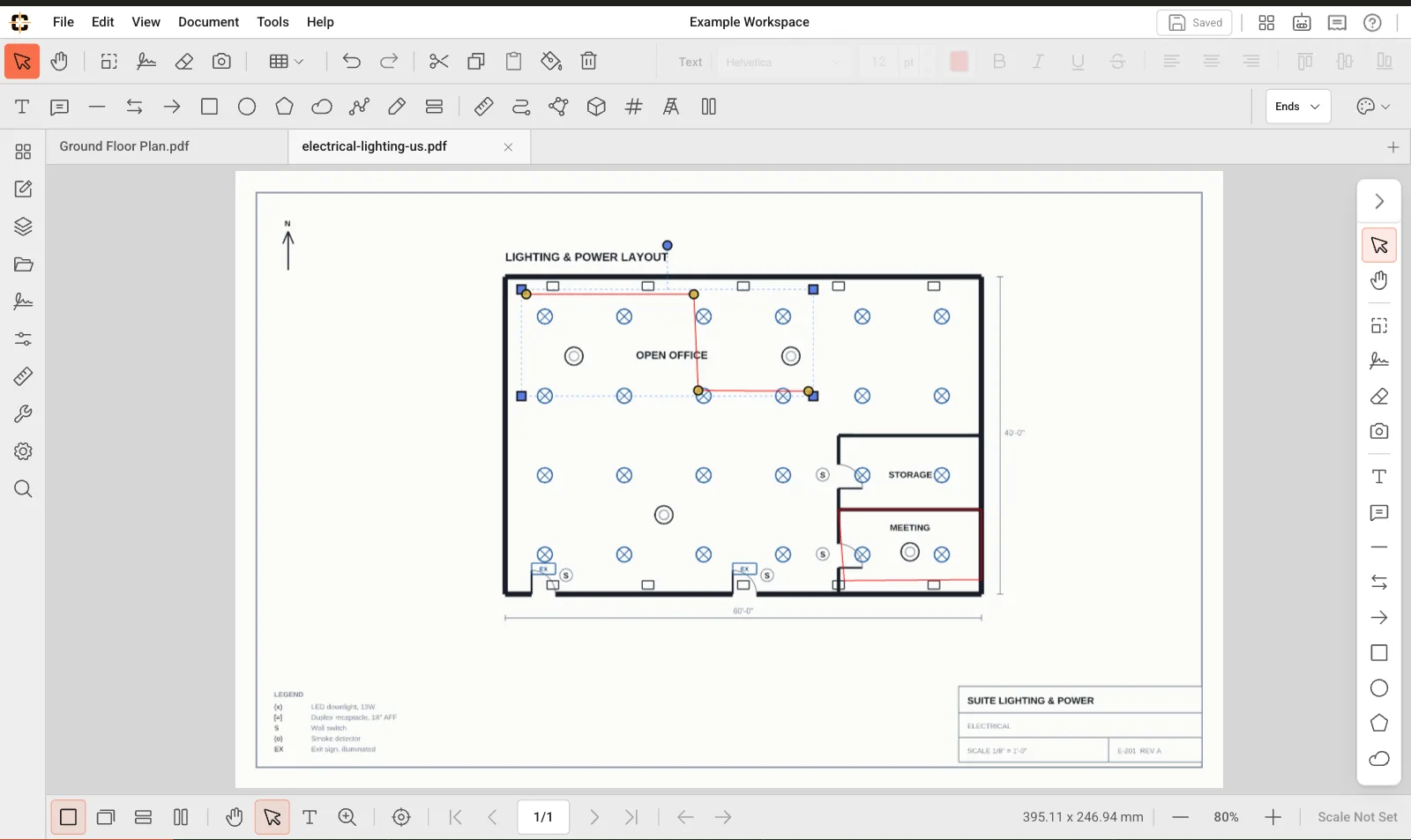

Click each point in sequence, then finish the path when the boundary or route is complete.
Create a multi-point markup
- 1
Choose Polygon or Polyline
Choose Polygon for a closed shape or Polyline for an open path.
- 2
Click each vertex
Click each corner or route point on the drawing.
- 3
Finish the markup
Complete the path using the canvas finish gesture or close the shape when required.
Adjust the path
- 1
Select the markup
Switch to Select and choose the polygon or polyline.
- 2
Move handles
Drag vertex handles to refine the path before exporting or linking the result to takeoff work.
