Measurements
Exporting Measurements to CSV
CSV export is useful when measurement values need to be checked, sorted, or shared outside the drawing workspace.
Updated 2026-06-12 · 3 min read
Drawing A-101.pdf
100%FitExport
Ready to export

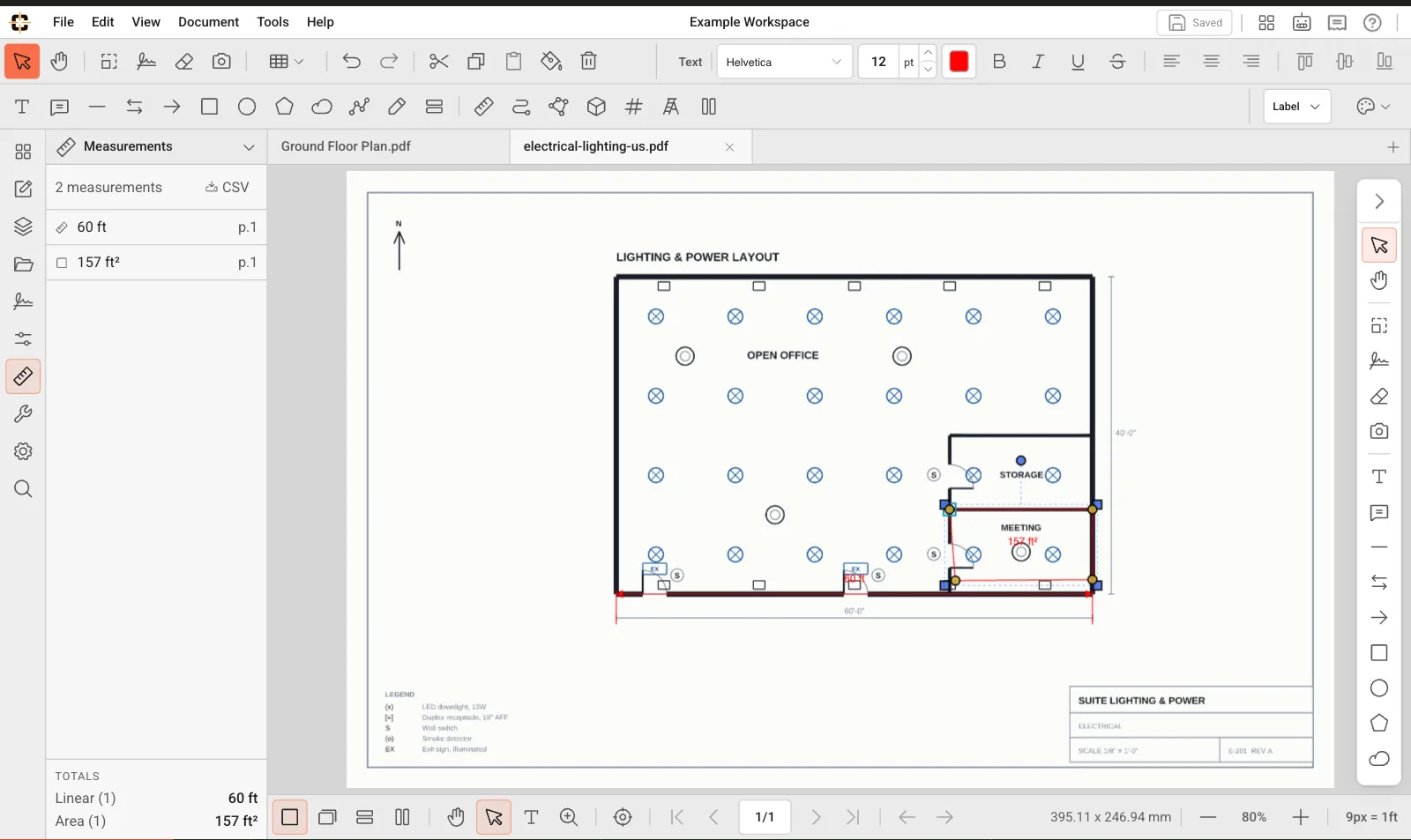

The Measurements panel can export rows with type, value, unit, page, and notes.
Export measurement rows
- 1
Open Measurements
Open the Measurements panel for the selected drawing.
- 2
Check the row list
Make sure the relevant measurements are present and named clearly.
- 3
Choose CSV
Use the CSV action in the panel header to download the measurement file.
Before importing elsewhere
Check units, scale, and duplicate measurements before using exported CSV values in a quote, spreadsheet, or estimating system.
