Using Grid and Snapping
Grid and snapping controls help align markups, measurements, and repeated annotations. They are especially useful when placing many objects on a structured plan.
Updated 2026-07-03 · 5 min read

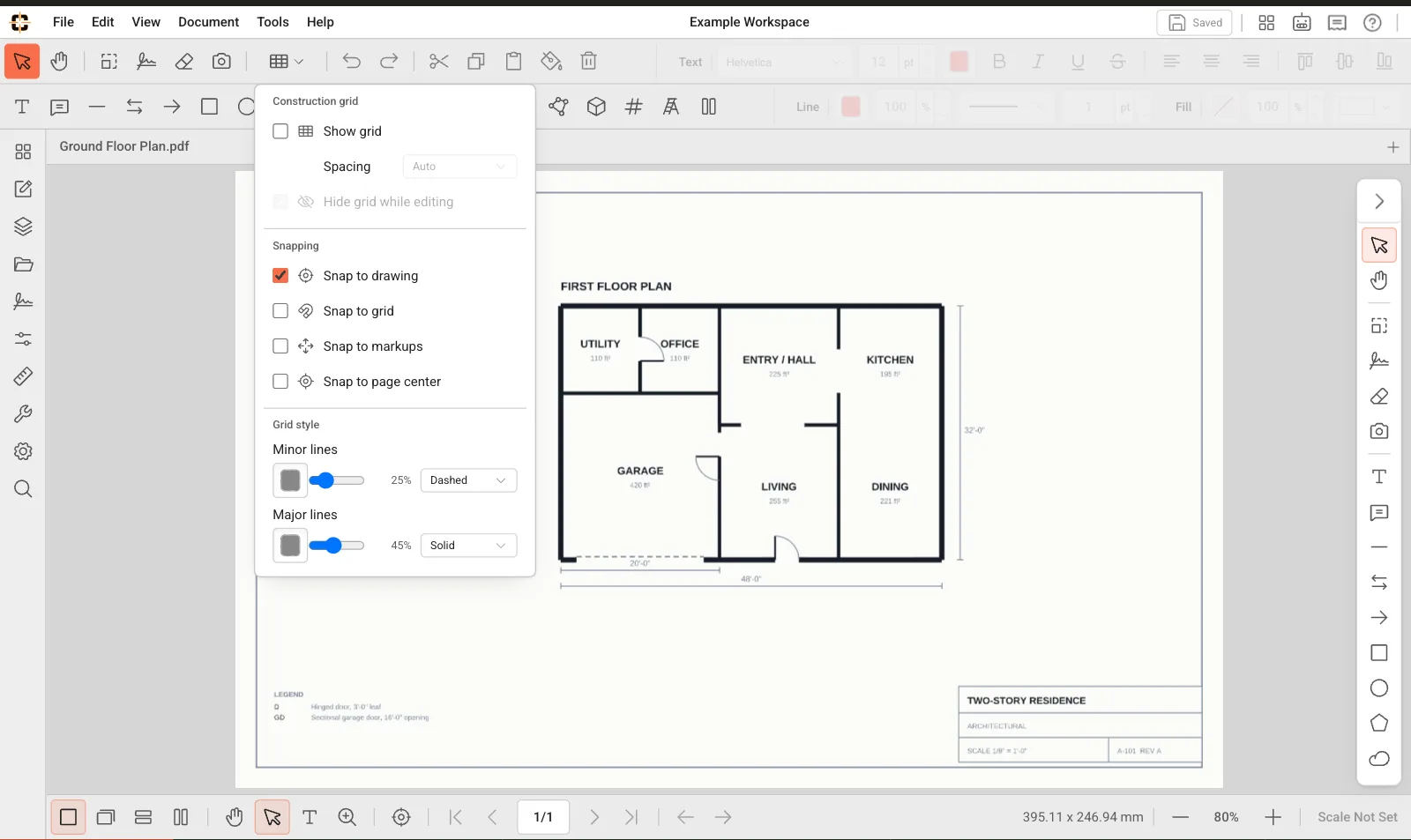

Grid visibility and the snap modes live in the View menu and toolbar grid controls.
Turn on grid support
- 1
Show the grid
Choose View > Show Grid or press Shift+F9 to display the construction grid.
- 2
Choose snapping modes
Enable Snap to Grid (Ctrl/Cmd+Shift+F9), Snap to Page Center (Ctrl/Cmd+Shift+F8), or Snap to Markup (Ctrl/Cmd+Shift+F7) depending on what you are placing.
- 3
Tune the grid appearance
Use the toolbar grid controls to adjust spacing (automatic or a fixed value), line style, and whether the grid hides while you are drawing.
Test before bulk work
Place a small markup and confirm the snap behaviour matches the work before marking up many items — snapping that helps on a structured plan can fight you on an irregular detail sheet.
