Troubleshooting
Measurement Values Look Wrong
Wrong measurement values usually mean the page is not calibrated, the wrong unit was entered, endpoints were placed inaccurately, or the sheet uses a different scale.
Updated 2026-06-12 · 5 min read

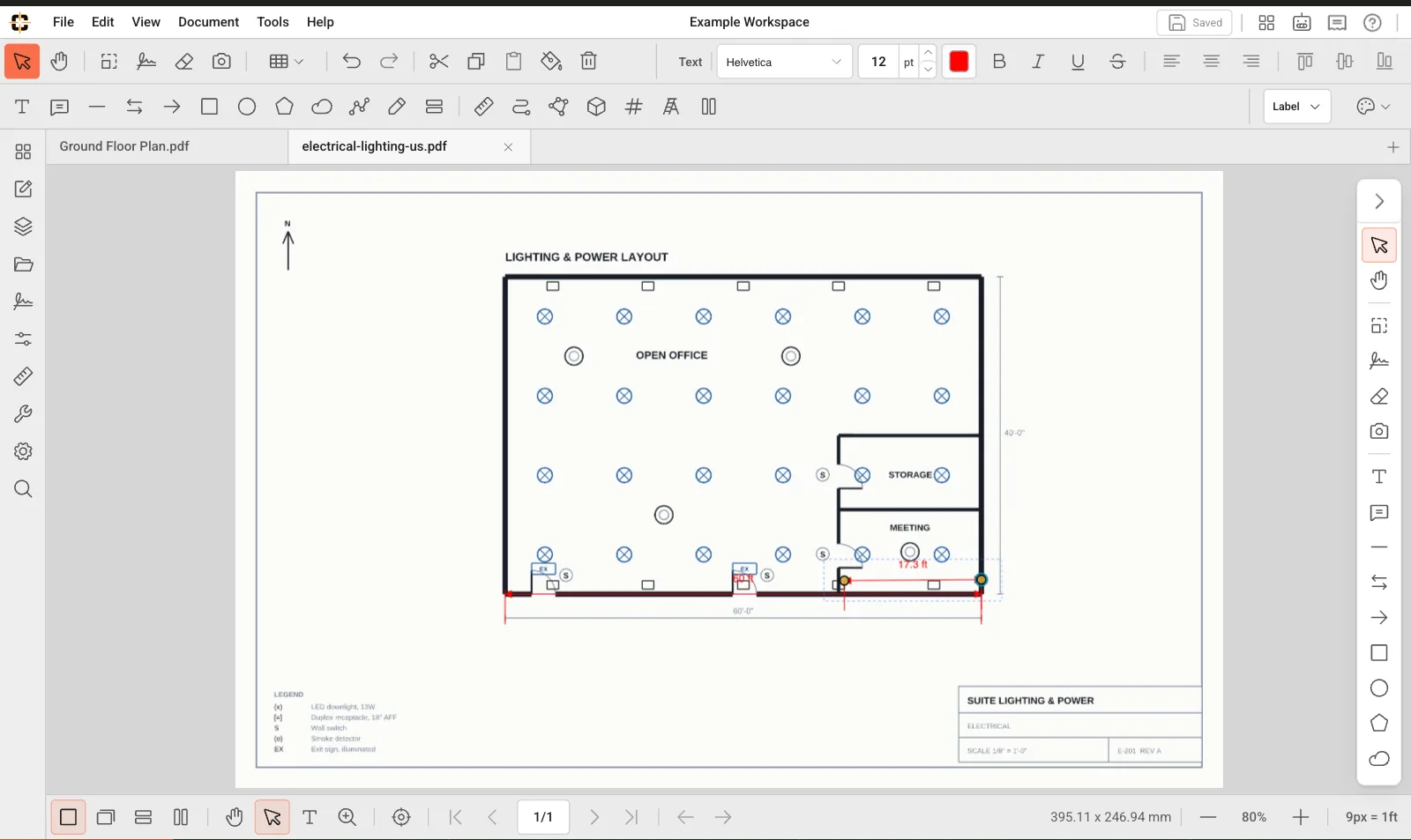

12.40 m
Always verify calibration against a second known dimension before relying on quantities.
Diagnose the issue
- 1
Check calibration
Confirm Set Scale has been run for the active page.
- 2
Check the unit
Make sure the entered unit matches the printed dimension.
- 3
Measure a known distance
Use a second printed dimension to confirm the scale is correct.
- 4
Check page scale
Look for drawings where different sheets, details, or viewports use different scales.
Fix the measurement
- 1
Recalibrate
Set scale again using the longest clear known dimension.
- 2
Move endpoints
Zoom in and adjust endpoint placement on existing measurements.
- 3
Review totals
Recheck measurement totals and BoQ links after corrections.
