Recalibrating After Scale Changes
Some drawing sets contain mixed scales or scanned pages. Recalibration keeps measurement values tied to the actual page scale you are using.
Updated 2026-07-03 · 4 min read

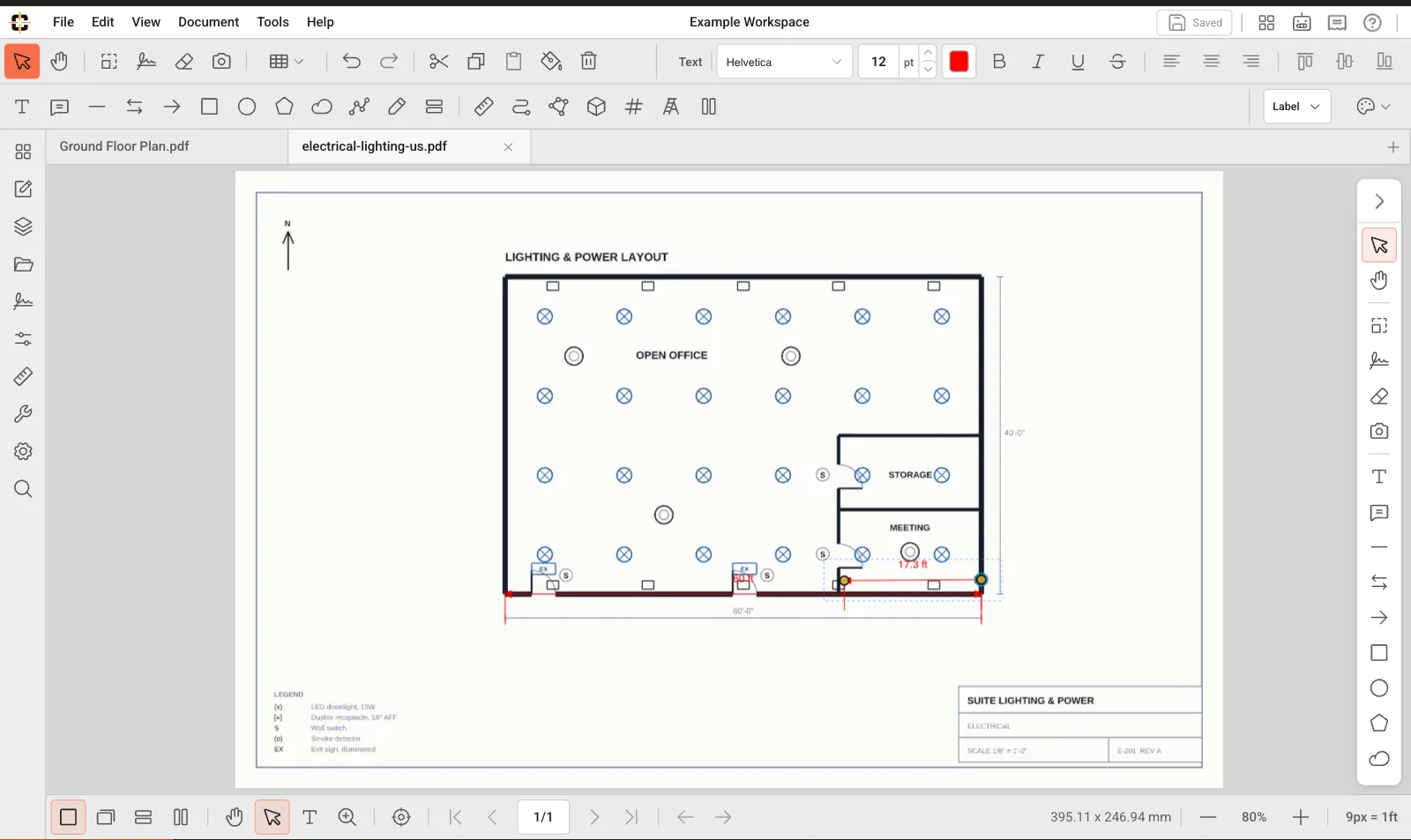

12.40 m
Use a second known dimension after calibration to catch scale or page-size problems early.
Know when to recalibrate
- 1
Check mixed-scale PDFs
Treat each page with a different printed scale as a separate calibration risk — scale is stored per page for exactly this reason.
- 2
Watch scanned drawings
Scanned sheets may not match the printed title block scale exactly.
- 3
Recheck after page changes
If a page is rotated, replaced, or re-inserted, confirm measurements still match known dimensions before trusting totals.
Recalibrate safely
- 1
Pick a clear dimension
Use the longest reliable printed dimension available.
- 2
Set scale again
Run Set Scale (S) and enter the real length and unit.
- 3
Review existing quantities
Check existing measurements after scale changes before relying on totals.
