Using Text Markups
Text markups are best for instructions, clarifications, review comments, and short notes that need to stay visible on exported drawing records. For a note with a leader arrow pointing at a detail, use the Callout tool instead.
Updated 2026-07-03 · 4 min read

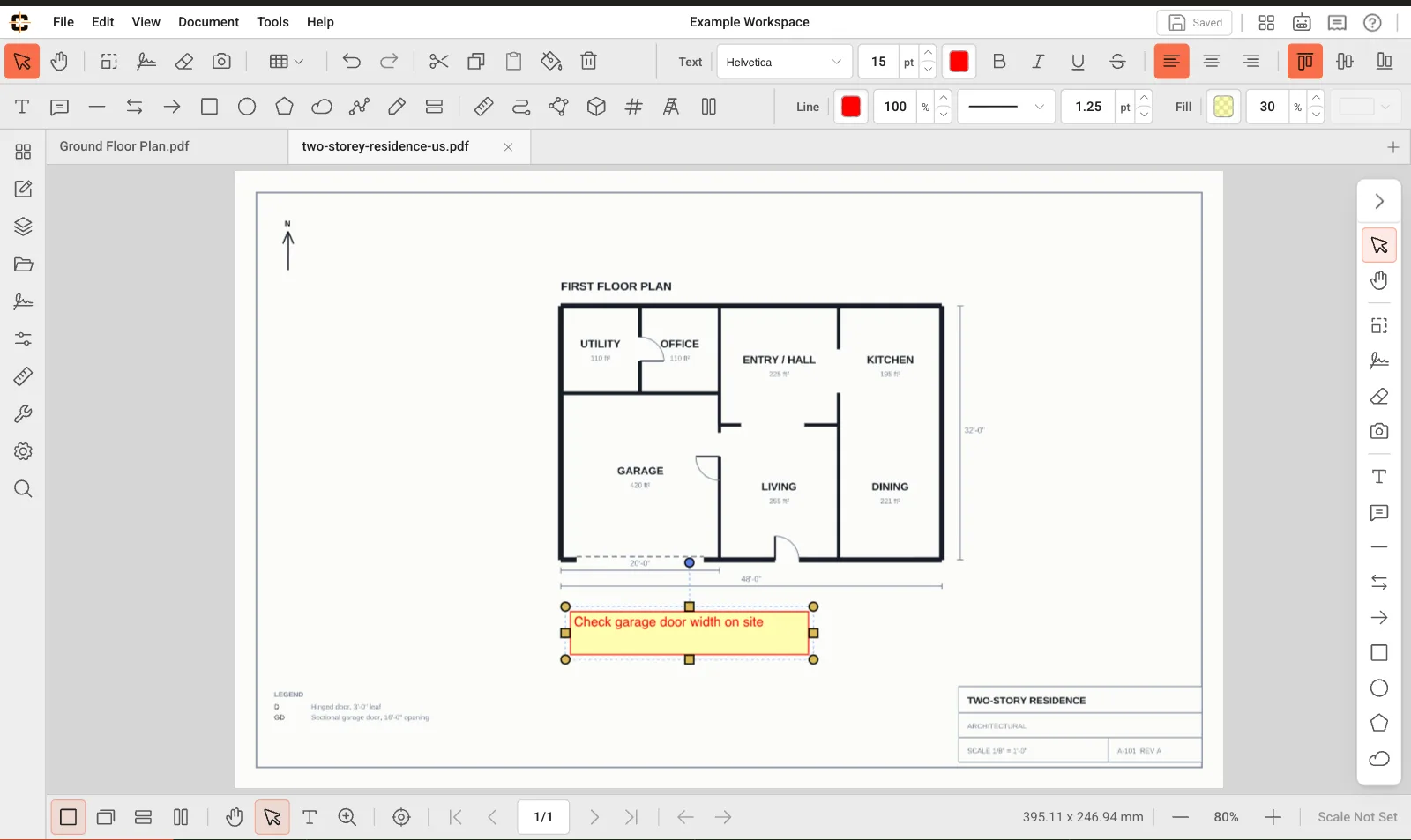

Text markups can be selected, edited, formatted, and exported with the drawing.
Place a text markup
- 1
Choose Text
Select Text from the markup toolbar or press T.
- 2
Click on the drawing
Click where the note should appear, then enter the note text.
- 3
Resize the box
Select the text markup and drag a handle if the note needs more room.
Format text
- 1
Select the text
Click the text markup or pick it from the Markup List.
- 2
Open Properties
Choose a font (Helvetica, Arial, Times New Roman, Courier, or Calibri), size from 6 to 72 pt, colour, bold, italic, underline, strikethrough, and left, centre, or right alignment.
- 3
Keep notes readable
Use short lines and enough contrast so exported PDFs remain legible on site.
