Using the Properties Panel

1. 1

   Select the markup

   Click the object on the drawing or choose it in the Markup List.

2. 2

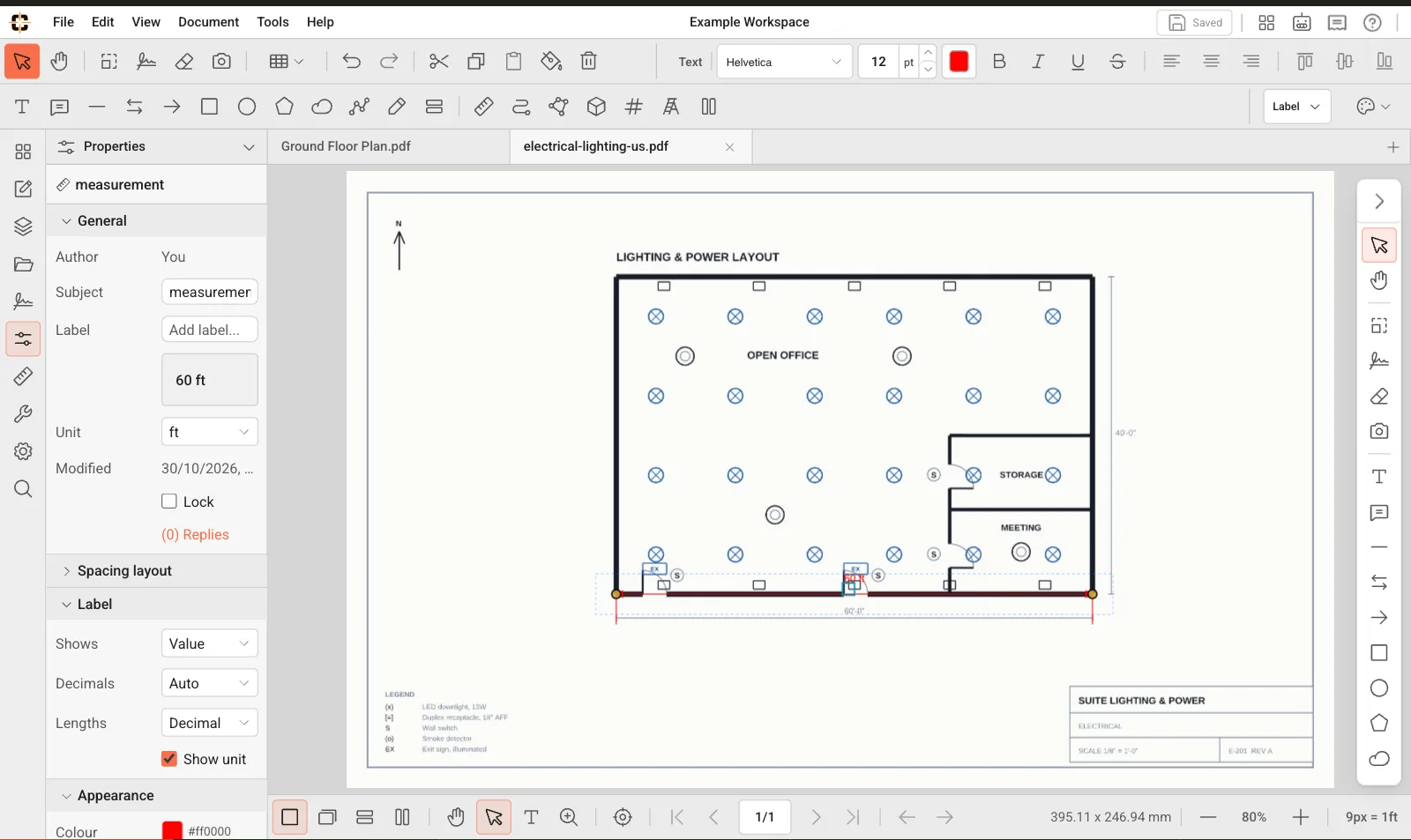

   Open Properties

   Click Properties in the sidebar rail.

3. 3

   Change fields

   Edit the general fields (subject, comments, label, status, colour, lock), the appearance section (fill, stroke, hatch, font), and measurement options shown for that markup.

Text and callouts expose font controls, shapes expose fill and hatch controls, lines expose end caps, volume measurements expose the height field, and count markers expose the count shape. Missing controls usually mean the selected markup type does not support that property.

Dimensions and measurements have a Label section. Decimals fixes the number of places (Auto picks by size), Lengths switches imperial lengths to feet and inches, and Show unit hides the unit. Shows chooses the value, your label, or label + value, so an area can read Slab: 26.84 m². Areas and perimeters can also show the length of every side. Lines, arrows, polylines, ellipses, rectangles and polygons draw their Label text, styled with the Font rows.

Click Replies under the general fields to open the markup's thread, type in the reply field and press Enter. Each reply shows who wrote it and when, and undo removes a reply you just added.

The status dropdown (Accepted, Rejected, Cancelled, Completed, In Review) marks where each item sits in your review. Status is visible in the Markup List and can be used for grouping.
