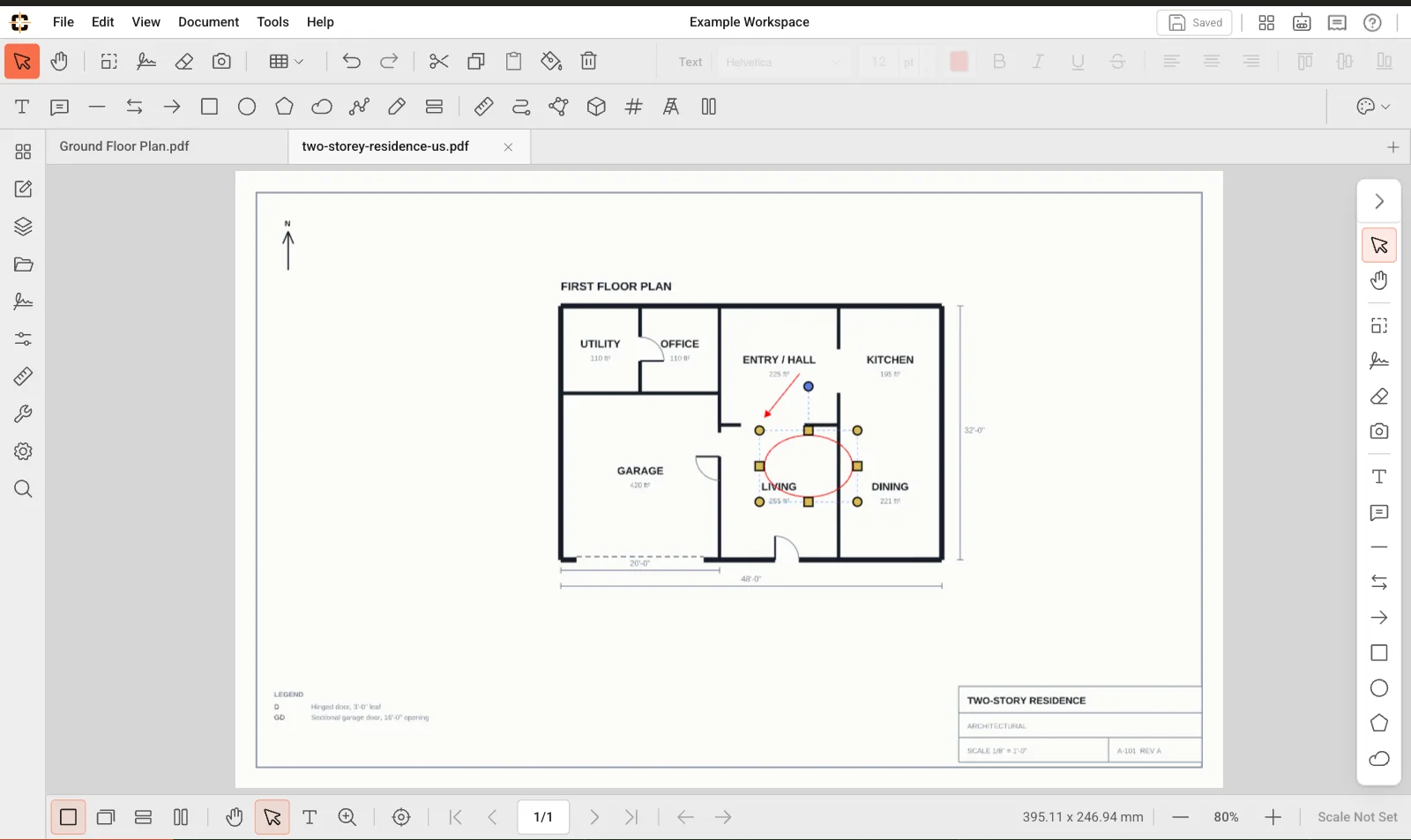

Creating and Editing Markups

1. 1

   Open a drawing

   Go to the app workspace, open a markup, and select the drawing tab you want to annotate.

2. 2

   Choose a tool

   Use the top toolbar or right tool rail to choose a text, shape, line, arrow, stamp, measurement, or count tool.

3. 3

   Place it on the page

   Click, drag, or click multiple points depending on the selected tool. The markup appears on the active page.

1. 1

   Select it

   Switch to Select, then click the markup on the drawing or choose it from the Markup List.

2. 2

   Move or resize

   Drag the object to move it. Use the visible handles to resize box, text, stamp, and count markups.

3. 3

   Change style

   Use the toolbar or Properties panel to update line colour, fill, opacity, text style, lock state, subject, layer, and status where available.

The Markup List is best for selecting, renaming, grouping, and deleting many items. The Properties panel is best for exact style, layout, lock, and metadata changes.
