Using the Measurements Panel
The Measurements panel is a focused view of quantity-related rows for the selected drawing, separate from the broader Markup List.
Updated 2026-06-12 · 4 min read
Drawing A-101.pdf
100%FitExport

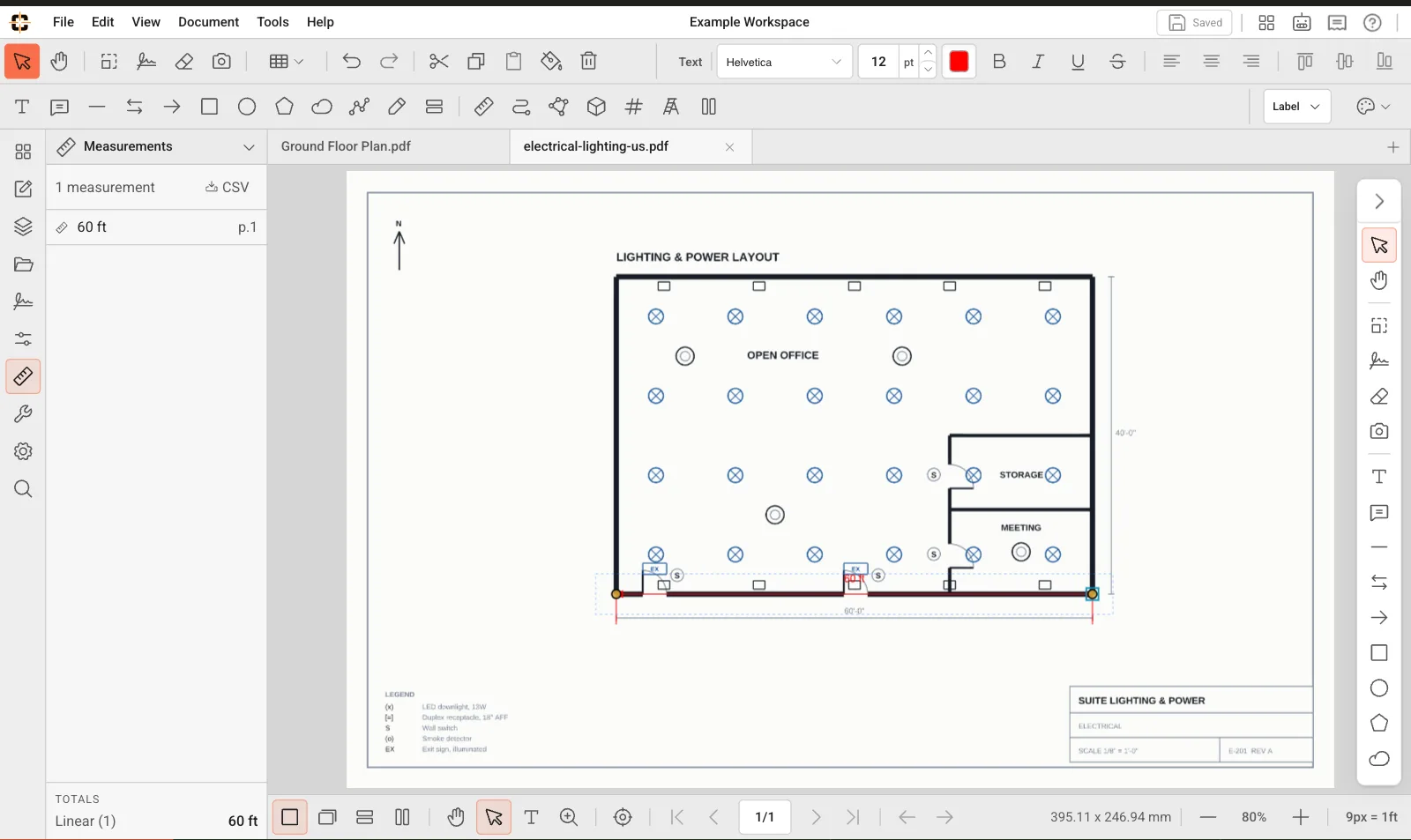

Measurement rows show type, value, unit, page, and totals.
Use measurement rows
- 1
Select a drawing
Open the drawing whose quantities you want to review.
- 2
Open Measurements
Click Measurements in the sidebar rail.
- 3
Click a row
Jump to the measured markup or page for visual verification.
Export or audit totals
- 1
Review totals
Check grouped totals by measurement type and unit.
- 2
Export CSV
Use the CSV action if the rows need spreadsheet review.
